FONYINDA-001

FONYINDA-001

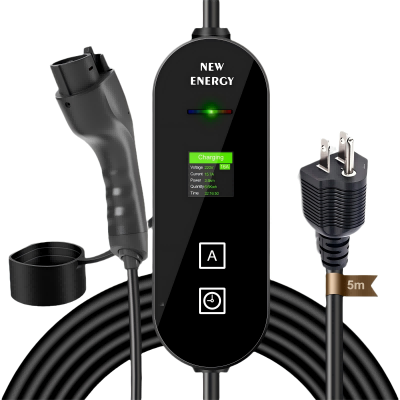

3.5KW Portable type AC Chargring Pile

Product Attributes

Input Frequency: 50/60 ± 3Hz

Maximum output current: 16A/32A

Output Voltage: 110~220Vac ± 15%

Cable length: min 5 m

Rated Output Power: 3.5KW

Packaging & Delivery

Selling Units: Set/Sets

Product Description


3.5KW Portable type AC Chargring Pile Applicable Scenes:

This type of charging pile is mainly used for home charging, which can be charged slowly for a long time without network and billing function

3.5KW Portable type AC Chargring Pile Technical Data


Detailed

specifications

Product model number

ENC-ACX003A

SAE-ACX003A


Input the voltage
110~220Vac ± 15%
Input the frequency
50/60 ± 3Hz
Output voltage
110~220Vac ± 15%

Maximum output

current

16A/32A
Cable length
5m(Defaut)
Measurement accuracy
Level 1

Electrical

indicators

Flow limit protection

value

≥110%

Pressure stabilization

accuracy

/

Current current

accuracy

/
Tripple coefficient
/
Efficiency
/
Power factor
/
Harmonic content is
THD
/
Functional
design
Human-machine
interface
LED display
Charging meathod
Automatic full
Charging mode
Plug and play
Safety design

Safety regulation

standards

IEC62196/EN61000/SAE J1772,etc
Safety function
Overvoltage protection, undervoltage protection, overload
protection, short circuit protection, grounding protection,
overtemperature protection,
Low temperature protection, lightning protection, emergency stop
protection, electric leakage protection
Environmental
indicators
Operating temperature
-25℃~+55℃
Working humidity
5%~95%(Non-condensing)
Working altitude
≤ 2000m
Protection level
IP54
Cooling mode
Natural cooling
Noise control
≤ 60dB
MTBF
At about 100,000 H


3.5KW Portable type AC Chargring Pile Features:


1、Light weight and portable;
2、Support wide voltage range input: 110~240Vac, 50/60Hz;
3、The charging current can be adjusted;
4、With over current, under current, over voltage, under voltage, leakage, surge protection and other safety functions;
5、Support IEC62196 mode 3, type 2 / Type 1 connector.
