FONYINDA-DC-031

FONYINDA-DC-031

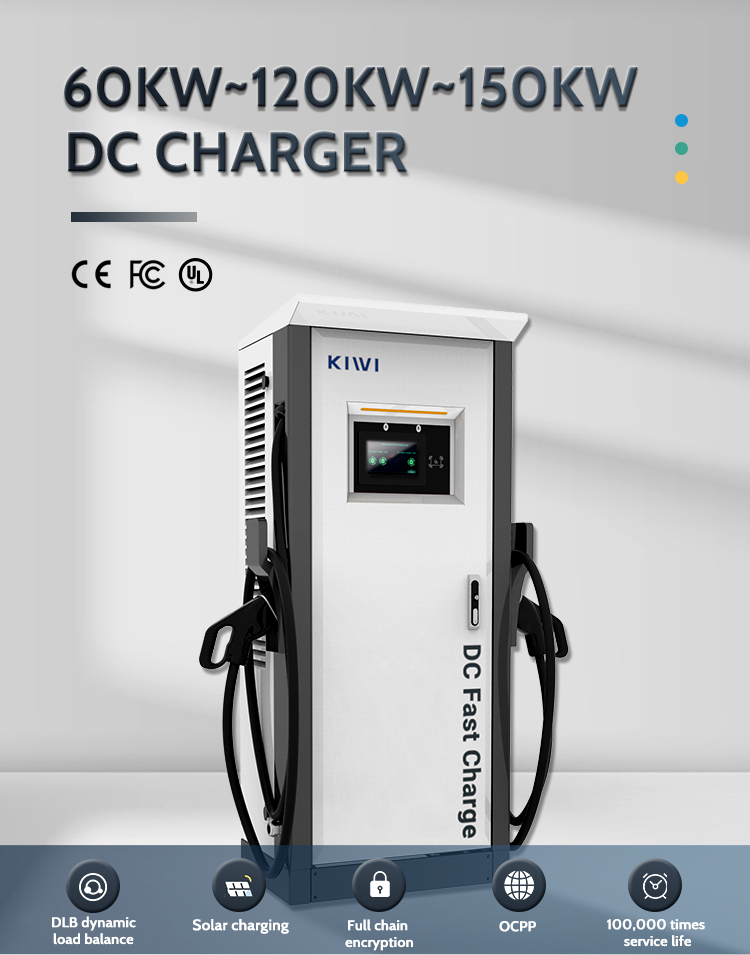

60 kw Charging Floor-standing Charging Pile New Energy Electric Vehicle Charging Pile

Item

Value

Rated Power

60KW

Charging mode

RFID、plug and charge、APP(OCPP)

Size (H * W * D)

700*340*1670mm

Weight

250kg

Plug wire length

3.5m(customizable)

Plug standard

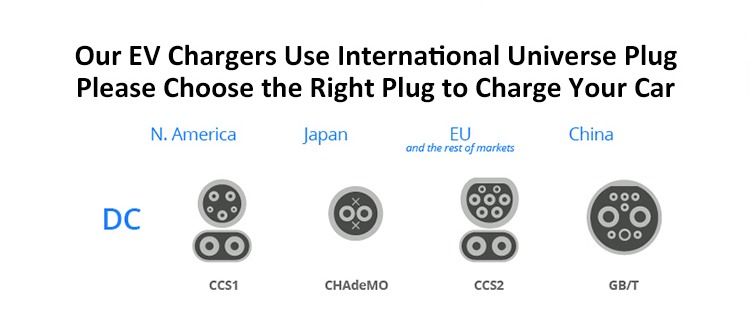

CHAdeMO or CCS1 orCCS2 orGB/T

Protection level

IP54

Cooling Method

Wind cooling

Standard :LAN

Optional :WIFI、4G

server communication, APP communication

OCPP

OCPP 1.6J/1.5J

Input

Input Voltage

Three-phase AC380V 50/60Hz(L1+L2+L3+N+PE)

Input Current

Each phase 0~92A

Leakage Protection

Type B RCD 30mA + 6mA

Operating temperature

-20℃~60℃

Output

Output voltage

DC 150V~1000V

Output current

60KW DC 0 ~100A

Human-computer interaction

LED indicator

Power supply, charging green, fault red

LCD

7 Inch HD high-brightness industrial resistance display
