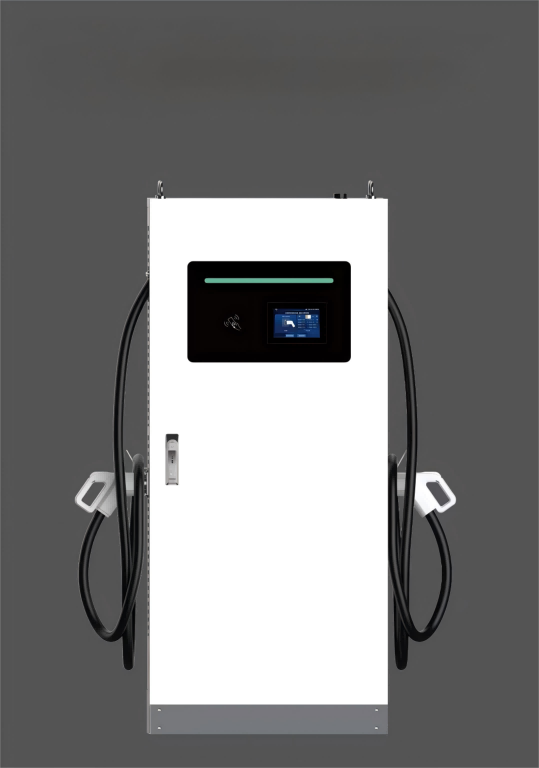

60kw Floor-mounted charging equipment v2g
Product Description1. Energy storage (electric vehicle energy storage V2G)
V2G, namely Vehicle to Grid. Electric vehicle energy storage V2G is a two-way charging pile, which can be charged and discharged. The maximum power can reach 250kW, covering the power demand of most of the current DC charging piles. It can realize the two-way flow of energy between electric vehicles and the power grid; realize the cheap charging of electric vehicles. Electricity, low-valley electricity, discharge during peak hours, car owners earn the difference in electricity bills; increase load flexibility, reduce distribution network investment, consume clean energy, boost the development of the electric vehicle industry, and reduce the footprint of public charging facilities.
2. Energy storage (battery cascade utilization)
It is suitable for the cascade utilization of retired or old power batteries as energy storage. The power covers 15kW~250kW, which is suitable for energy storage in industrial and commercial parks. Flexible embedded PCS solutions, flexibly design different forms of energy storage or battery-based systems according to customer needs; isolated AC/DC converters have higher safety, higher efficiency and smaller size when connected to batteries; and The off-grid all-in-one machine can switch to off-grid power supply after the power grid is powered off, which is suitable for microgrid (islands, remote villages, etc.) scenarios.
3.For 5G base station energy storage, battery capacity, emergency power supply and equipment aging
V2L, that is, Vehicle to Load, an electric vehicle with bidirectional charging and discharging equipment, can be used as a mobile power station to supply power to a 220Vac AC load, which is equivalent to a mobile power bank.
Products Parameters & Case
Charger parameter
Product number | DCB007A-V2G | DCB015A-V2G | DCL030A-V2G | DCL060A-V2G | ||
Detailed specifications | rated power | 7kW | 15kW | 30kW | 60kW | |
charging equipment | Installation method | Wall-mounted | Floor-mounted | |||
route | down in down out | |||||
Equipment size | Subject to P/L | Subject to P/L | ||||
Rectification mode | Input voltage range | 175~305VAC | 260～485VAC | |||
input voltage frequency | 45~55Hz | 45~65Hz | ||||
Output voltage range | 200~750VDC | 150~750VDC | ||||
Maximum output current | 23.4A | 50A | 100A | 200A | ||
Inverter mode | DC input voltage range | 300~750VDC | ||||
DC input maximum current | 23.4A | 50A | 100A | 200A | ||
AC output voltage range | 175VAC~305VAC | 260～485VAC | ||||
AC output frequency | 45Hz-55Hz | 45~65Hz | ||||
cable length | 5m | |||||
Measurement accuracy | Level 1 | |||||
Electrical indicators | Current limit protection value | ≥110% | ||||
Voltage regulation accuracy | ≤±0.5% | |||||
Steady flow accuracy | ≤±1% | |||||
Ripple factor | ≤± 1 % | |||||
efficiency | Rectification mode ≥9 3 % Inverter mode ≥ 9 4 % | ≥9 4.5 % | ||||
power factor | ≥0.99 (above 50% load) | |||||
Harmonic content THD | ≤5% (above 50% load) | |||||
feature design | HMI | 7 inch LCD color display touch screen | ||||
charging mode | Automatic charging/fixed power/fixed amount/fixed time | |||||
payment method | Credit card payment/scan code payment | |||||
Networking | Ethernet 3G/4G | |||||
safety design | Executive standard | GB/T20234, GB/T18487, GB/T27930, NB/T33008, NB/T33002 | ||||
security function | Charging gun temperature detection, over voltage protection, under voltage protection, overload protection, short circuit protection, grounding protection, over temperature protection, low temperature protection, insulation monitoring protection, reverse polarity protection, lightning protection, emergency stop protection, leakage protection | |||||
Environmental indicators | Operating temperature | -25℃~+55℃ | ||||
Working humidity | 5%~95% non-condensing cream | |||||
working altitude | <2000m | |||||
Protection class | IP54 | |||||
cooling method | air cooling | |||||
noise control | ≤60dB | |||||
MTBF | 100,000 hours | |||||
